Thermica Control with digital controller

Specification :

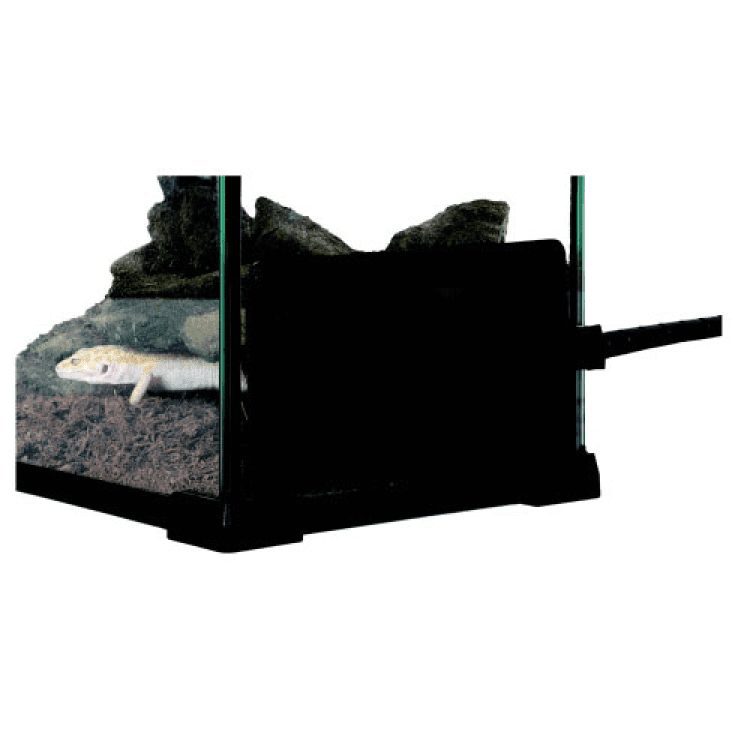

• heating mat including control device and temperature sensor
• the desired temperature can be adjusted directly from the control device
• intuitive and very easy to control
• easy to read display thanks to illuminated digits
• the memory function protects against data loss in the event of a blackout
• suitable for a variety of uses
• the integrated smart-chip prevents overheating
• IP67 protection degree, not suitable for underwater use

Content:

• heating mat

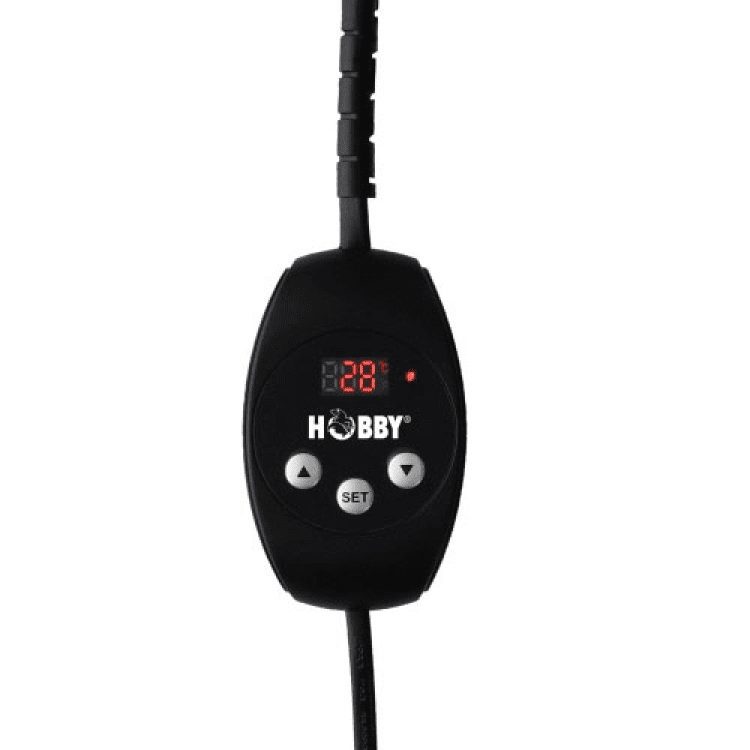

• control device with LED operating indicator and temperature sensor
• double-sided adhesive strips
• Instructions for Use

Technical specifications:

Template Watt Dimensions (mm)

37124      6 W     178 x 100

37125      11 W    200 x 150

37126      23 W    300 x 200

37127      36 W    450 x 200

• Operating voltage: 220 – 240 V ~ 50/60 Hz
• Indicated temperature range: 0.0 – 60.0 ° C
• Temperature adjustment range: 20.0 – 50.0 ° C
• Indicated temperature accuracy: 1 ° C
• Accuracy of temperature control: 1 ° C
• Length of connection cable: 1.90 m
• Length of sensor cable: 1.50 m

All data is approximate data. Subject to technical changes.
